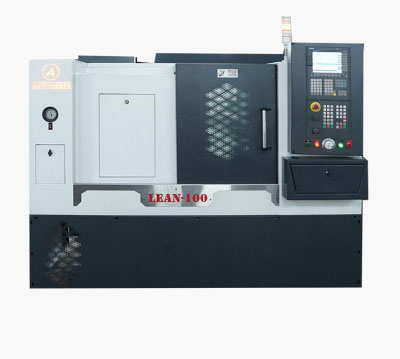

ATR 100 (WITHOUT CENTER)

    ATR 100 (WITHOUT CENTER)

    Machine Specification

    Capacity - ATR 100
    Swing Over Bed mm 300
    Max Turning Dia. (Upto) mm 150
    Standard Turning Dia mm 100
    Max Turning Length mm 150
    Chuck Size mm 165
    Main Spindle
    Spindle Nose mt/min A2-5
    Spindle Power kw 3.7/5.5
    Spindle Speed (inf. Variable) RPM 3500
    Feed Rates
    Rapid Traverse X-Axis mt/min 20
    Rapid Traverse Z-Axis mt/min 20
    Turret / Tooling
    Size (Model) BTP 63
    No. Of Tool Positions no. 8
    Tool Shank Size mm 20x20
    Max Boring Bar Dia mm 32
    CNC System Make Fanuc / Siemens / Delta
    Accuracy
    Positioning Accuracy mm ±0.003
    Repeatability mm ±0.004
    Parameters
    Overall Size (L×B×H) mm 2000×1400×1650
    Machine Weight (Approx) kg 2000
