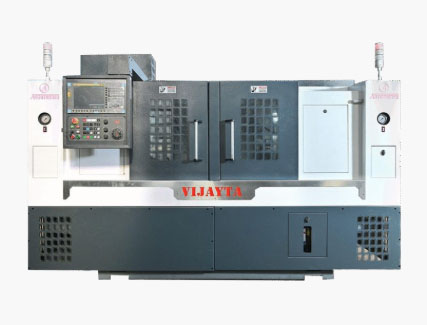

VIJAYTA (DOUBLE HEAD) -

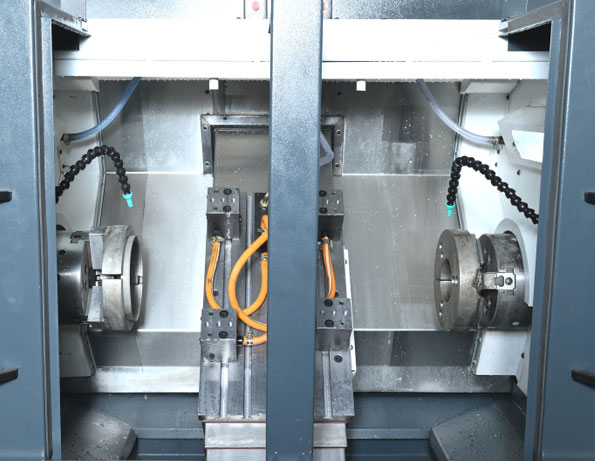

VIJAYTA (DOUBLE HEAD)

Machine Specification

Capacity	-	Vijayta 165	Vijayta 200
Max. Swing Over Bed	mm	300	350
Max Turning Length	mm	200	250
Max. Job Swing Dia	mm	150	200
Chuck Size	mm	165	200
Main Spindle
Spindle Nose	-	A2-5	A2-5
Spindle Power	Kw	3.7/5.5	5.5/7.5
Spindle Speed	RPM	3500	3000
Bore Through Drawbar	mm	36	40
Feed Rates
Rapid Traverse X-Axis	mt/min	20	20
Rapid Traverse Z-Axis	mt/min	20	20
Tail Stock
Quill Dia./Stroke	mm	70	70
Quill Taper	No.	MT4	MT4
Quill Travel	mm	75	100
Turret / Tooling
Size (Model)	BTP	63	80
No. Of Tool Positions	No.	8	8
Tool Shank Size	mm	20x20	25x25
Max Boring Bar Dia	mm	32	40
CNC System	Make	Fanuc / Siemens / Delta	Fanuc / Siemens / Delta
Accuracy
Positioning Accuracy	mm	±0.003	±0.003
Repeatability	mm	±0.004	±0.004
Parameters
Overall Size (L×B×H)	mm	2000×1400×1600	2200×1400×1800
Machine Weight (Approx)	kg	2500	2800
